Tired of slow, outdated diagnostics? Bio-FET chips bring real-time detection, incredible precision, and versatile applications to the forefront. Discover how this revolutionary technology is shaping the future of biosensing and transforming the healthcare industry.

What is a Bio-FET Chip?

A Bio-FET chip is an advanced semiconductor biochip that combines biology and electronics to detect specific biological molecules with precision. At its core is a biosensor chip based on a field-effect transistor (FET), a common electronic component. What makes a Bio-FET unique is its functionalized gate, which is coated with a biological recognition layer. This layer binds to target molecules, changing the surface potential and altering the current between the source and drain terminals. It functions as a biosensor by detecting changes in the electrical charge distribution caused by binding target molecules, such as proteins or DNA, to the biorecognition layer, and converting this interaction into an electrical signal.

A Bio-FET chip combines these capabilities, offering real-time, sensitive, and compact detection for various applications in the biomedical field. For instance, during the COVID-19 pandemic, Bio-FET biochips played a critical role in nucleic acid detection, demonstrating their potential for rapid, accurate diagnostic applications.

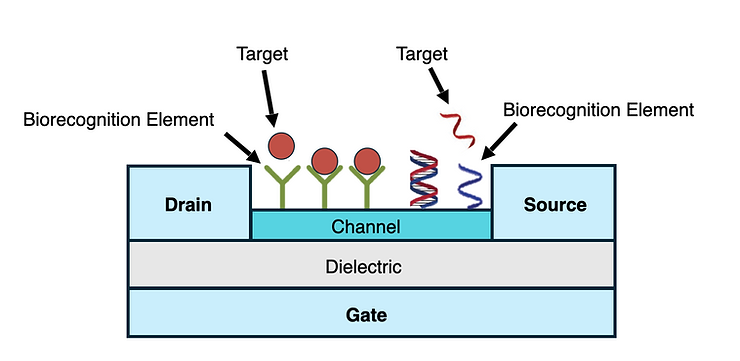

Parts of Bio-FET Chip

A Bio-FET chip has two key components that work together to detect and measure biological molecules:

1. Field-Effect Transistor (FET): The FETs serve as the transducer in the Bio-FET chip. They control the current flow between two terminals by using a third terminal called the gate. It then takes the biochemical interaction that occurs at the biorecognition element and translates it into an electrical signal.
2. Biorecognition Element: The biorecognition element is a critical component of the Bio-FET chip. This component is designed to specifically bind to the target molecules, such as proteins, antigens, or DNA. It ensures the chip’s high sensitivity and specificity by acting like a lock that only a specific molecular “key” can fit. These elements can include biological materials such as antibodies, enzymes, or nucleic acids, depending on the intended application.

Materials of Bio-FET Sensors

The choice of materials plays a critical role in the performance of Bio-FET sensors. Researchers and engineers use advanced materials to enhance their sensitivity, selectivity, and overall efficiency. Here are some of the most common materials used in Bio-FET sensors:

• Silicon Nanowires (SiNWs): These one-dimensional nanostructures offer a high surface-to-volume ratio and excellent charge carrier mobility, enhancing sensitivity when functionalized with biorecognition elements. They are compatible with existing semiconductor manufacturing technologies, which means they can be produced at scale. Their high surface sensitivity ensures accurate and reliable detection of target molecules.
• Graphene: Graphene, a single layer of carbon atoms arranged in a hexagonal lattice, is highly valued for its extraordinary electrical conductivity and high surface area. These properties make it extremely sensitive to even minor changes in surface potential, allowing it to detect very low concentrations of target molecules.
• Carbon Nanotubes (CNTs): CNTs are cylindrical structures made of carbon atoms. They have a high surface-to-volume ratio and excellent electrical properties, making them ideal for amplifying the signal generated during molecular interactions.

Working Principle of Bio-FET Chip

Fundamentally, a Bio-FET chip operates by using the principles of a field-effect transistor, but with a biological twist. In a standard FET, the gate controls the current flow between the source and drain terminals using an electric field. In a Bio-FET, the gate is functionalized with a biorecognition element that interacts specifically with target molecules.

Here’s how it works:

1. Functionalized Gate: The gate of the Bio-FET is coated with biorecognition elements, such as antibodies, enzymes, or DNA. These elements is designed to bind only with specific target molecules.
2. Target Binding and Detection: When a target molecule binds to the biorecognition element, it alters the surface charge near the gate, affecting the electric field at the gate. This change influences the current flow between the source and drain terminals, with the magnitude of the current variation corresponding to the concentration of the target molecules. The current change serves as the measurable output signal.

Benefits of Bio-FET Chips

What if diagnostics could be faster, more precise, and seamlessly integrated into everyday devices? Bio-FET chips are making this a reality. Here’s how their innovative features redefine what’s possible in biosensing.

Real-Time Response

BioFET technology offers real-time detection capabilities. Unlike traditional diagnostic methods that require lengthy wait times for results, BioFET sensors deliver immediate results as target molecules bind to the sensor surface. This makes BioFET ideal for applications requiring immediate feedback, such as infectious disease testing.

High Sensitivity and Selectivity

Bio-FET chips exhibit exceptional sensitivity and selectivity, capable of detecting biomolecules at ultra-low concentrations. This high sensitivity is attributed to the direct interaction between the target analyte and the transistor’s surface, leading to immediate electrical responses. The selectivity is achieved through the functionalization of the sensor surface with specific biorecognition elements, such as antibodies or aptamers, that bind exclusively to the target molecules.

Label-Free Detection

Traditional biosensing methods often require labeling of target molecules with fluorescent or radioactive tags, which can be time-consuming and may alter the analyte’s natural behavior. Bio-FET chips enable label-free detection by directly measuring changes in current resulting from target binding. This simplifies the detection process, reduces preparation time, and maintains the integrity of the biological sample.

Amplification-Free

Bio-FET technology can detect target molecules without the need for amplification steps, such as polymerase chain reaction (PCR) in nucleic acid detection. The direct transduction mechanism allows for the detection of low-abundance targets in their native concentrations, streamlining the workflow and reducing the potential for contamination or errors associated with amplification processes.

Compact Design

Bio-FET chips can be miniaturized, making them perfect for portable and wearable devices. Their compact size and low power consumption allow them to be integrated into wearable devices for continuous health monitoring. Miniaturized Bio-FET sensors also have the potential for point-of-care diagnostics, enabling testing in a doctor’s office or at home without the need for specialized laboratories.

Scalable Production

Bio-FET chips can be fabricated using established semiconductor manufacturing techniques, allowing for large-scale production with high reproducibility and uniformity. This scalability ensures that Bio-FET-based sensors can be produced cost-effectively, meeting the demands of widespread clinical, food safety, and environmental applications.

Applications of Bio-FET Chip Device

Bio-FET chips have revolutionized biosensing with their cutting-edge features. Below are the primary applications of this innovative technology:

Antigen Detection

Bio-FET chips are designed to detect antigens with exceptional precision, thanks to their high sensitivity and biorecognition elements. They can identify specific viral or bacterial antigens at extremely low concentrations, making them ideal for early disease detection. Their label-free detection reduces the complexity of testing, while their real-time response enables rapid diagnostics. This is particularly valuable during outbreaks like the pandemic, where quick and accurate antigen detection is critical for containment and treatment.

Disease Biomarker Sensing

The high sensitivity and specificity of Bio-FET chips allow them to detect biomarkers for diseases such as cancer, infectious diseases, and neurodegenerative conditions like Alzheimer’s. Their ability to operate at low detection limits makes early diagnosis possible, even before symptoms manifest. Also, their compact design supports simultaneous multi-biomarker analysis, providing a comprehensive understanding of disease progression. This efficiency and precision are critical for improving patient outcomes and tailoring treatments in personalized medicine.

Drug Screening

Bio-FET chips streamline drug screening through their real-time detection capabilities. They can analyze molecular interactions between drugs and their targets, such as enzymes or receptors, without the need for labeling or complex sample preparation. This saves time and reduces costs compared to traditional methods. The chips’ ability to provide immediate feedback on binding events supports faster identification of promising drug candidates, accelerating the drug discovery process and advancing personalized therapies.

Environmental Monitoring

The portability and low power consumption of Bio-FET chips make them suitable for environmental monitoring. They can detect contaminants like pesticides, heavy metals, and pathogens in water, air, and soil with high accuracy. Their label-free detection and rapid response times enable real-time monitoring of pollutant levels, which is critical for environmental protection.

Food Safety

In food safety, Bio-FET chips are invaluable due to their high sensitivity and ability to detect multiple contaminants, such as bacteria, toxins, and chemical residues, simultaneously. Their real-time detection feature ensures quick identification of hazards, reducing the risk of foodborne illnesses. The chips’ compact design and low cost enable on-site testing, making them practical for food manufacturers and regulators. This ensures compliance with safety standards while maintaining the integrity of the food supply chain.

Future Trends of Bio-FET Chip Technology

Bio-FET technology is on the brink of an exciting future, with breakthroughs that promise to reshape diagnostics, healthcare, and beyond. Here are the latest advancements that are reshaping the landscape:

Wearable Biosensor Devices

The fusion of Bio-FET technology with wearable devices, like smartwatch, is a game-changer for health monitoring. Imagine a wearable sensor that tracks your stress levels by measuring cortisol in your sweat. These biosensors offer real-time updates and early warnings for health issues, all while being comfortable and discreet, thanks to advances in flexible materials and miniaturization. This trend puts personalized healthcare quite literally in the palm of your hand—or on your wrist.

AI Integration

Pairing Bio-FET chips with AI is revolutionizing diagnostics. AI’s ability to process and decode complex data patterns from sensors delivers faster, smarter, and more accurate results. Imagine predictive healthcare, where algorithms detect potential health issues before symptoms arise, or personalized treatment plans that adapt in real-time. This integration also minimizes human error, enhancing diagnostic reliability as doctors cannot rely solely on experience and memory to ensure accurate diagnoses for every patient. The synergy of biosensing and machine learning is propelling healthcare into a new era of intelligent, data-driven precision.

Multifunctional Bio-Nano Hybrid Complexes

The development of bio-nano hybrid complexes, combining biological molecules with nanomaterials, is enabling the creation of multifunctional Bio-FETs. These devices can be controlled both electronically and optically, offering versatile detection methods and expanding the range of detectable analytes.

Novel Nanomaterials Integration

Incorporating advanced nanomaterials, such as two-dimensional (2D) materials like molybdenum disulfide (MoS₂), into Bio-FETs is significantly enhancing their performance. These materials offer unique electronic properties, high surface area, and excellent biocompatibility, leading to increased sensitivity and faster response times in biosensing applications.

Molsentech: Your Gateway to Next-Generation Bio-FET Platform

Bio-FET chips are revolutionizing biosensing with their unparalleled sensitivity, real-time detection, and ability to convert biological interactions into precise electrical signals. From healthcare and environmental monitoring to food safety, Bio-FET technology is driving breakthroughs across industries, transforming how we detect and address critical challenges.

At the forefront of this innovation is Molsentech, a pioneering biotech startup from Taiwan. With a mission to reshape diagnostics, we have developed a cutting-edge Bio-FET platform that integrates semiconductor chip design and fabrication, modification of biorecognition elements, system integration, and AI to deliver faster, smarter, and more accurate detection. Our groundbreaking technology has already demonstrated high sensitivity and rapid detection capabilities during the COVID-19 pandemic and is now unlocking new possibilities for detecting diseases such as Alzheimer’s, cancers, and infectious diseases.

Join Molsentech in revolutionizing healthcare and diagnostics with life-saving innovations that promise a healthier, more informed future for everyone. The future of diagnostics starts here—let’s build it together. Contact us today to learn more about how our groundbreaking Bio-FET solutions can transform your field and meet your specific needs.
